1. Maximum input-output voltage difference is 29V.
2. Maximum output current is 3A for input-output difference <5V.
3. The maximum output voltage is 50V.
4. Accept both AC and DC voltage source.
5. Connect two modules in series to double the output voltage, 100V or +/-50V DC
6. Connect two in parallel to double output current, 6A.

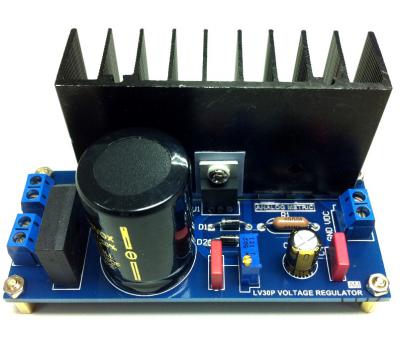

7. Use of low dropout regulator LM1085-ADJ with line regulation of 0.015% (typical), load regulation of 0.1% (typical).
8. Big reservoir capacitor with 30mm diameter.
9. PCB dimension: 100mm x 43mm
10. PCB thickness 2.4mm and 2oz copper
