Features

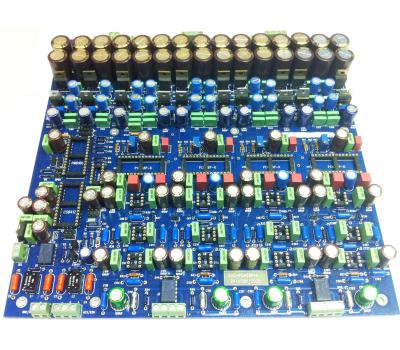

1. This is assembled PCM1704/PCM1702/PCM58 Balance DAC, which can be used with PCM58P x4 / PCM1702 x4 / PCM1704 x4 IC, CS8412/CS8414, PMD100/SM5813/SM5842/DF1704E
2. Input: coaxial S/PDIF or optical S/PDIF (optional TOX179) or USB (optional PCM2704 module / PCM2706 kit)
3. Ouput: either singled-end coaxial or balanced, stereo
4. DF1704E/PMD100 adopts 44.1kHz/20bit coding for HDCD.
5. The first OPAMP stage for I/V conversion and the second OPAMP stage for low-pass filter. OPAMP can be used either AD797 or NE5534 or OPA627.
6. Power supply unit is done by 2 steps: the first step uses MJL1503 and 15031 for voltage regulation; second step uses LM317 and LM337. Totally 10 independent power supplies can be adjusted by resistor trimmers for inner core circuitry.
7. Dale resistors and Motorola MR756 rectifying diodes are used.
8. PCB Dimension: 25cmx25cm, 2.4mm thickness, 2oz copper.
Optional: R-Core Transformer R50-PCM58 50W
Output power: 50W
Primary voltage: 115/230V 50-60Hz
Secondary voltage: 20V (0.6A) x2
15V(0.6A) x2
12V(0.6A)x1
