Package Include

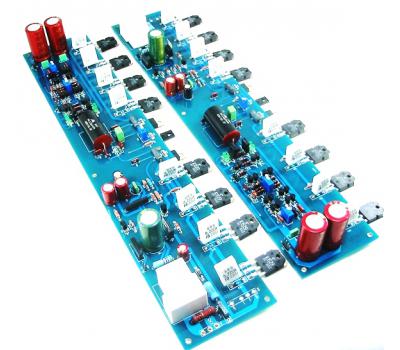

1. Two A88 Power Amplifier Modules
Features
1. MOSFET power amplifier: 2SK1529 and 2SJ200 x3 pairs
2. Enhanced version of A80 power amplifier module
3. Input: single-end, stereo
4. Output: single-end, stereo
5. Power supply: 27-30V AC x2
6. Class A amplifier stage, feed forward amplification
7. Symmetrical PCB layout design for both stereo channel.
8. Built-in voltage regulator, speaker protection circuit by using IC upc1237
9. PCB dimension: 360mm (L) x 70mm (W) x 2 PCS, gold-plated double-layer PCB
