Your Position: Home > Output Transformer > Push Pull > OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright

Prev Next OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright

  • Order Code:AM002269
  • Market price:$122.20
  • Shop price:$122.20
  • Member Price：$120.98
  • View count：7565
  • Rank:comment rank 5
  • Quantity：
  • Total：
    • Available Options

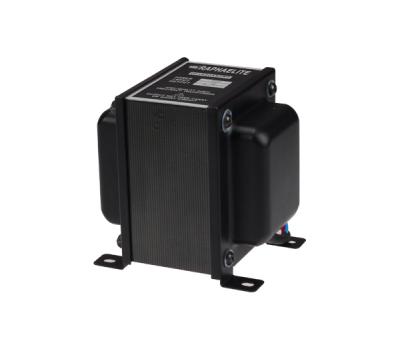

OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright

Zoom in picture

  • OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright
  • OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright
  • OP5K50AB 50W 5K:4-8 Ohms Push-Pull Transformer Upright

Description

Related

（Model）： OP5K50AB
（Output）： 50W
（Primary Impedance）： 5KΩ
（Secondary Impedance）： 4Ω、8Ω
（Maximum DC）： 200mA
（Insulation Intensity）： 62MΩ DC2000V/1min
（Frequency Response）： 14Hz – 40KHz -0.5dB
                                                  10Hz – 55KHz -1dB
（Weight）： 3.3kg
（Style）：V-96×50
（Applications）：6L6GC EL34 6550 KT88
