Package Include

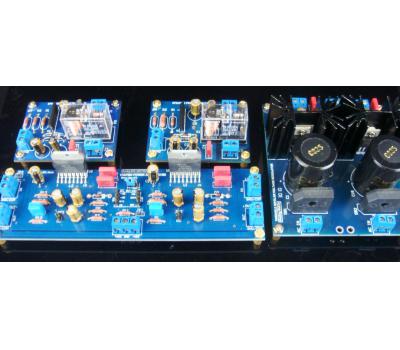

1. TDA7294 Power Amplifier Kit (Stereo)
2. Speaker Protection (Mono) Kit x2
3. Variable LV Positive & Negative Regulator Kit (2-30V) x1
2. Assembly Manual
Features
1. Requires DC power supply +/-24 to +/-38V DC
2. Configurable to either stereo (R & L) audio channels or mono BTL channel mode
3. RMS output power:
(a) up to 70W+70W in Stereo Mode @4,6,8 Ohms loading
(b) up to 100W+100W for one BTL channel in Bridge Mode @4,6,8 Ohms loading
4. High dynamic range
5. Voltage gain 30dB
6. THD < 0.05%
7. Options: DC Servo Module for offset cancellation and speaker protection module.
8. PCB dimension: 162(H) x 49(W) mm, double layers, thickness 2.4mm, with 2oz copper.
Option
1. Toroidal Power Transformer T140
2. DC Servo Kit for DC Offset Cancellation
3. Heat Sink for Power Amplifier
