Package Include

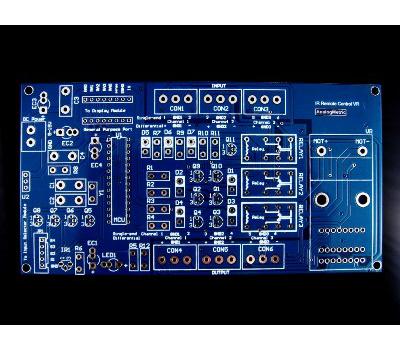

1. IR Remote Control VR PCB(6 Channels)
2. MCU
3. Assembly Manual
Features
1. IR remote control (Supports RC-5 IR protocol and most remote control)
2. Audio volume control supports up to 6 single-end signals or 3 balanced signals, independent channels.
3. Functions with mute and power on/off.
4. This kit uses 6 channel motorized potentiometer, Nichicon and WIMA capacitors, Dale resistors.
5. Power supply requires 9-15V DC
6. PCB dimension: 150mm x 78mm, thickness 2.5mm, with 2oz copper.
IR Remote Channel Selection (4 Channels)
1. Support 4 single-end inputs (RCA) or 3 single-end inputs plus 1 balanced input (XLR), for both R and L channels .
2. Blue/White LEDs for indicator.
3. Built-in voltage regulator.
4. Required DC supply voltage 8-13V, and which can be supplied by tube amp.
5. PCB Dimension: 120mm(L) x 53mm(W)
Extension: this kit can be used with LCD module DIY kit (volume and channel indicator).
This kit comes with a remote control. Other compatible remote control (RC-5) can be used to control this kit.
