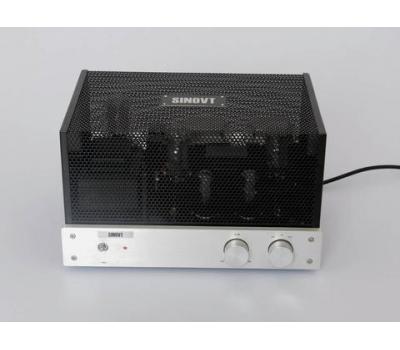

SINOVT 2A3 Tube Power Amplifier
Single Ended (2 Channels)



This tube power amplifier come with the following tubes:

SOVTEK    2A3 x2 PCS
Shuguang  6N9P/6SL7/6H9C x2 PCS
Shuguang  5Z3PA x1 PCS

Technical Parameters:                Standard
1. Input sensitivity                         770mV
2. Ouput power     3.3Wx2            (PM 8 ohm)
                                                       Total Harmonic Distortion(THD)<5%
3. Output power    4.5Wx2               (PM 8 ohm)
                                                        Total Harmonic Distortion(THD)<10%
4. Signal to ratio (S/N): 75dB
5. Input resistance:100Kohm
6. Output resistance:4ohm and 8ohm
7. Power consumption:80W
8. Insulation:300Mohm (DC2000V,1min)
9. Dimension:345x280x205 (W-D-H)
10.Net Weight:15KG



Frequency spectrum

20Hz-22KHz(-1dB PM 3.3W )
12Hz-30KHz(-3dB PM 3.3W )

Payment Method:Paypal  or credit card

We promise to ship out within 3 business days after payment settlement.

Shipping:
1.Surface parcel: Need about 30-45days
2.Air parcel: Need about10-15 days.
3.EMS express: Need about 4-7 days.

We offer combined shipping discounts for buying more than one items.

If you have any inquiries , please feel free to contact us by email: sales@analogmetric.com
