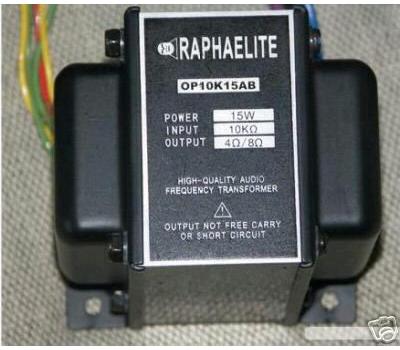

This single channel output transformer can be used for 6V6,6p1,EL84 series tubes. Extremely low resonance and high insulation lengthen the transformer lifetime.
Output power: 15W
Insulating strength: 75Mohm, DC2000V/1min
Primary resistance: 10Kohm
Primary current: 85mA
Secondary resistance: 4ohm and 8ohm
Frequency flatness: 30Hz-30KHz -0.5dB
20Hz-40KHz -1dB
Iron core dimension: 25.4mm(W)x 40mm(D)
Weight: 3.3KG
Payment Method:Paypal or credit card
We promise to ship out within 3 business days after payment settlement.
Shipping:
1.Surface parcel: Need about 30-45 days.
2.Air parcel: Need about 10-15 days.
3.EMS express: Need about 4-7 days.
We offer combined shipping discounts for buying more than one items.
Refund:Buyer need to pay for return shipping charges.
If you have any inquiries , please feel free to contact us by email: sales@analogmetric.com
